Toyota Reach Truck

Posted by PT TRAKTOR KARYA NUSA on 01.58 with No comments



Toyota Forklift RR120B | 1.2 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE120B

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1200 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2182 mm

Ø  Lift height                                               :  4800 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  5 kw

Ø  Lift motor rating S3 15%                        :  10 kw

Ø  Battery voltage, nominal capacity K5     :  48/310 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp








Toyota Forklift RR140B | 1.4 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE140B

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1400 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2182 mm

Ø  Lift height                                               :  4800 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  5 kw

Ø  Lift motor rating S3 15%                        :  10 kw

Ø  Battery voltage, nominal capacity K5     :  48/465 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp









Toyota Forklift RR160B | 1.6 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE160B

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1600 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2182 mm

Ø  Lift height                                               :  4800 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  5 kw

Ø  Lift motor rating S3 15%                        :  10 kw

Ø  Battery voltage, nominal capacity K5     :  48/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp




Toyota Forklift RR140HN | 1.4 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE140HN

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1400 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  9 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/310 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp






Toyota Forklift RR160HN | 1.6 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE160HN

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1600 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  9 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/310 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp





Toyota Forklift RR140H/HE | 1.4 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE140H/HE

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1400 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  9 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/465 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp




Toyota Forklift RR160H/HE | 1.6 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE160H/HE

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1600 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  9 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/465 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift RR180H/HE | 1.8 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE180H/HE

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1800 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  10.5 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/465 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp

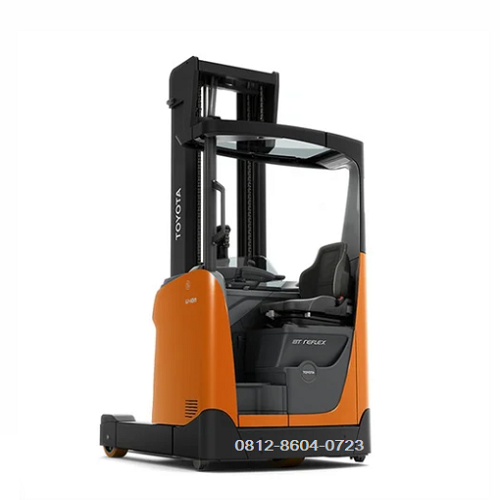

Toyota Forklift RR200H/HE | 2 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE200H/HE

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  10.5 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp





Toyota Forklift RR250H/HE | 2.5 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE250H/HE

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  2500 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  10.5 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/775 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp



Toyota Forklift RR160HR | 1.6 ton

Specification unit

Ø  Model                                                      :  BT Reflex RRE160HR

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Seated

Ø  Load Capacity                                         :  1600 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2887 mm

Ø  Lift height                                               :  7000 mm

Ø  Fork dimensions                                     :  40/100/1150 mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  48/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.

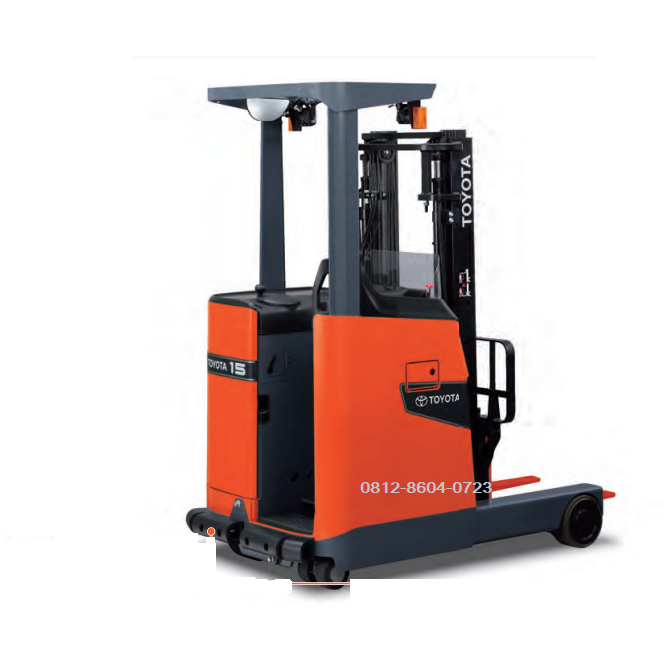

Toyota Forklift 7500-R35 | 1.55 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7500-R35

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1588 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2261 mm

Ø  Lift height                                               :  7645 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7500-DR32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7500-R32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2261 mm

Ø  Lift height                                               :  7645 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7500-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7500-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  2261 mm

Ø  Lift height                                               :  7645 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7520-DR32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7520-DR32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7520-R45 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7520-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.



Toyota Forklift 7520-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7520-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7720-DR32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7720-DR32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7700-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7700-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7700-DR32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7700-DR32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7200-R35 | 1.55 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7200-R35

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1550 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7200-R40 | 1.8 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7200-R40

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1800 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.



Toyota Forklift 7200-DR25 | 1.1 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-DR25

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1130 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.






Toyota Forklift 7300-DR25 | 1.1 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-DR25

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1130 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7300-DR30 | 1.36 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-DR30

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1360 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7300-R35 | 1.55 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-R35

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1550 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 7300-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.

\





Toyota Forklift 7300-R40 | 1.8 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7300-R40

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1800 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7730-R32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7730-R32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1450 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  3708 mm

Ø  Lift height                                               :  9449 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7730-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7730-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  4674 mm

Ø  Lift height                                               :  13767 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 7530-R45 | 2 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7530-R45

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  4674 mm

Ø  Lift height                                               :  13767 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.



Toyota Forklift 7530-DR32 | 1.45 ton

Specification unit

Ø  Model                                                      :  Toyota Raymond 7530-DR32

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  600 mm

Ø  Height, mast lowered                              :  4674 mm

Ø  Lift height                                               :  13767 mm

Ø  Fork dimensions   (L x W x T                 :  (1067 x 102 x 38) mm

Ø  Drive motor rating S2 60 min                 :  10 kw

Ø  Lift motor rating S3 15%                        :  11 kw

Ø  Battery voltage, nominal capacity K5     :  36/620 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBR10 | 1 ton

Specification unit

Ø  Model                                                      :  8FBR10

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1340 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face                                :  1050 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/201 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/240 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.



Toyota Forklift 8FBR13 | 1.3 ton

Specification unit

Ø  Model                                                      :  8FBR13

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1300 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1490 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face                                :  1050 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/201 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/240 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 8FBR15 | 1.5 ton

Specification unit

Ø  Model                                                      :  8FBR15

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1500 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1580 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face     D                        :  1155 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/280 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/370 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBR18 | 1.8 ton

Specification unit

Ø  Model                                                      :  8FBR18

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1800 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1580 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face     D                        :  1155 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/280 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/370 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 8FBR20 | 2 ton

Specification unit

Ø  Model                                                      :  8FBR20

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1750 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1250 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.36 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBR25 | 2.5 ton

Specification unit

Ø  Model                                                      :  8FBR25

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2500 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1950 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1270 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.35 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.






Toyota Forklift 8FBR30 | 3 ton

Specification unit

Ø  Model                                                      :  8FBR30

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  3000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1240 mm

Ø  Turning Radius (Outside) B                    :  2000 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1320 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.35 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/445 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBRS20 | 2 ton

Specification unit

Ø  Model                                                      :  8FBRS20

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1750 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1250 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.36 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 8FBRS25 | 2.5 ton

Specification unit

Ø  Model                                                      :  8FBRS25

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2500 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1950 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1270 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.35 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBS10 | 1 ton

Specification unit

Ø  Model                                                      :  8FBS10

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1340 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face                                :  1050 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/201 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/240 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.







Toyota Forklift 8FBS13 | 1.3 ton

Specification unit

Ø  Model                                                      :  8FBS13

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1300 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1490 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face                                :  1050 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/201 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/240 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBS15 | 1.5 ton

Specification unit

Ø  Model                                                      :  8FBS15

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1500 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1580 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face     D                        :  1155 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/280 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/370 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 8FBS18 | 1.8 ton

Specification unit

Ø  Model                                                      :  8FBS18

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  1800 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1580 mm

Ø  Overhead Guard Height  C                     :  2250 mm

Ø  Length to Fork Face     D                        :  1155 mm

Ø  Electric Motor Drive                               :  4.9 kw

Ø  Electric Motor Load Handling                :  8 kw

Ø  Electric Motor Power Steering                :  0.26 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/280 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/370 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBS20 | 2 ton

Specification unit

Ø  Model                                                      :  8FBS20

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1750 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1250 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.36 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.




Toyota Forklift 8FBS25 | 2.5 ton

Specification unit

Ø  Model                                                      :  8FBS25

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  2500 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1090 mm

Ø  Turning Radius (Outside) B                    :  1950 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1270 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.35 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/320 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.





Toyota Forklift 8FBS30 | 3 ton

Specification unit

Ø  Model                                                      :  8FBS30

Ø  Drive System                                          :  Electric

Ø  Operator type                                          :  Stand Up

Ø  Load Capacity                                         :  3000 kg

Ø  Load Center                                            :  500 mm

Ø  Overall Width  A                                     :  1240 mm

Ø  Turning Radius (Outside) B                    :  2000 mm

Ø  Overhead Guard Height  C                     :  2330 mm

Ø  Length to Fork Face     D                        :  1320 mm

Ø  Electric Motor Drive                               :  5.2 kw

Ø  Electric Motor Load Handling                :  11 kw

Ø  Electric Motor Power Steering                :  0.35 kw

Ø  Voltage/Capacity (5-hour ratings) Min.   :  48/445 (V/Ah)

Ø  Voltage/Capacity (5-hour ratings) Max.  :  48/445 (V/Ah)

Ø  Type of drive control                               :  Variable AC

Ø  Tire                                                          :  Polyurethane

Ø  Attachmet :  Bale clamp, paperoll clamp, sideshifter, carton clamp,   rotating clamp, rotating fork, hinged fork, block clamp, pushpull, load stabilizer, foam clamp, tire clamp, drum clamp.
